Ex fans (Elektrical)

Our Ex fans are powerful turbofans which employ explosion-protected technology you can rely on. The units are distinguished by their particularly durable construction, robust technology, and a design which makes them extremely comfortable to use. The central and most important parts of our Ex fans are the Ex-protected components. Each unit is operated by a fully-sealed motor.

This seal ensures that the motor does not come into contact with flammable materials and gases – this makes our Ex fans safe and reliable units for harsh environments. Ex fans from Airclean Safety Products not only have a perfectly sealed motor, but also an antistatic housing, which conducts static electrical charges to earth.

Powerful Ex fans for explosion-protected ventilation of rooms, storage tanks, process columns and reactors, with performance from 500 m³/hr to 54,000 m³/hr

Axial fans according to
ExII 2G Ex db db IIB T6 Gb

AC 200 Ex

Technical Data
Motor: 230 V / 0.27 kW / 50 Hz
Dimensions: 350 x 350 x 390 mm
Weight: 10 kg
Hose: DN 230
Performance: 1400 m³/hr

AC 300 Ex

Technical Data
Motor: 230 V / 0.65 kW / 50 Hz
Dimensions: 410 x 380 x 410 mm
Weight: 20 kg
Hose: DN 300
Performance: 3500 m³/hr

AC 400 Ex

Technical Data
Motor: 230 V / 1.67 kW / 50 Hz
Dimensions: 460 x 410 x 480 mm
Weight: 28 kg
Hose: DN 400
Performance: 7200 m³/hr
Model AC 200 Ex with quick-coupling container and 7600 mm anti-air transport hose
antistatic air transport hose

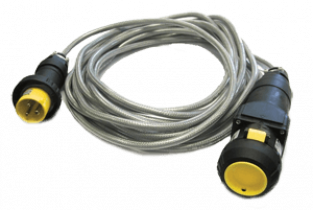

Ex extension cable

Ex Zone, 1, 2, 21 and 22
Ex db eb h mb IIB+H2 T4 Gb
Ex h mb tb IIIC T135°C Db

New!

AC SAF 35 D

Technical Data
Motor: 230 V / 0.44 kW / 50 Hz
Dimensions: 460 x 350 x 590 mm
Weight: 22 kg
Hose: DN 300
Performance: 3320 m³/hr

Ex Axialventilator AC AXV 400 Ex (Auer L&L)
ExII 2G Ex h IIB T4 Gb

AC AXV 400 Ex

Technical Data

Motor: 400V / 1.8 kW / 50Hz
Dimensions: 480 x 530 x 780 mm
Weight: 40 kg
Hose: DN 400
Performance: 12000 m³/hr

Ex radial fans according to
ExII 2G Ex h IIB T3 Gb

AC 80 Ex

Technical Data
Motor: 230 V / 0.2 kW / 50 Hz
Dimensions: 400 x 400 x 400 mm
Weight: 15 kg
Hose: DN 100
Pressure: 450 Pa
Performance: 500 m³/hr

AC 3000 Ex

Technical Data
Motor: 400 V / 2.2 kW / 50 Hz
Dimensions: 610 x 590 x 575 mm
Weight: 40 kg
Hose: DN 200
Pressure: 1900 Pa
Performance: 3200 m³/hr

AC 8000 Ex

Technical Data
Motor: 400 V / 4.0 kW / 50 Hz
Dimensions: 700 x 650 x 700 mm
Weight: 70 kg
Hose: DN 250
Pressure: 2450 Pa
Performance: 7400 m³/hr

AC 22000 Ex

Technical Data
Motor: 400 V / 15 kW / 50 Hz
Dimensions: 1600 x 1500 x 1550 mm
Weight: 550 kg
Hose: DN 400
Pressure: 4000 Pa
Performance: 22000 m³/hr
