Industrial / duct ventilation (also available in Ex proof versions)

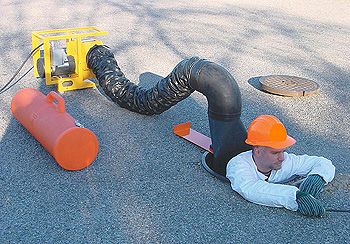

For ventilation and cooling of rooms, drains and soakaways. These systems are also the ideal solution for the extraction of welding fumes in enclosed areas.

Output of 1,200 m³/hr – 54,000 m³/hr

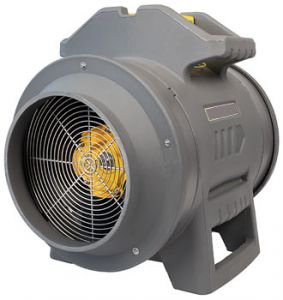

Axial fans

AC 200

Technical Data
Motor: 230 V / 0.3 kW / 50 Hz
Dimensions: 360 x 320 x 360 mm
Weight: 10 kg
Hose: DN 230
Performance: 1400 m³/hr

AC 300

Technical Data
Motor: 230 V / 0.6 kW / 50 Hz
Dimensions: 380 x 380 x 410 mm
Weight: 16 kg
Hose: DN 300
Performance: 2900 m³/hr

AC 400

Technical Data
Motor: 230 V / 1.1 kW / 50 Hz
Dimensions: 380 x 480 x 400 mm
Weight: 18 kg
Hose: DN 400
Performance: 6400 m³/hr

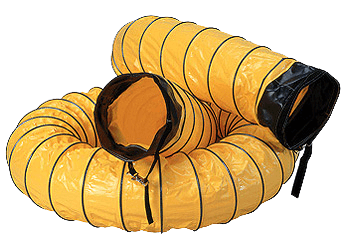

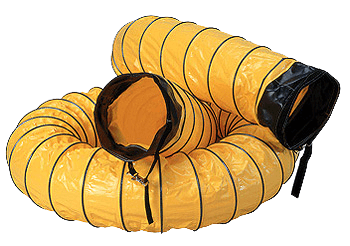

Air transport hoses

Radial fans

AC 1200

Technical Data
Motor: 230 V / 0.7 kW / 50 Hz
Dimensions: 350 x 400 x 500 mm
Weight: 16 kg
Hose: DN 120
Pressure: 1200 Pa
Performance: 1400 m³/hr

AC 2500

Technical Data
Motor: 230 V / 0.75 kW / 50 Hz
Dimensions: 420 x 480 x 570 mm
Weight: 24 kg
Hose: DN 160
Pressure: 1500 Pa
Performance: 2500 m³/hr

AC 8000

Technical Data
Motor: 400 V / 2.2 kW / 50 Hz
Dimensions: 550 x 700 x 550 mm
Weight: 48 kg
Hose: DN 250
Pressure: 2100 Pa
Performance: 8000 m³/hr

AC 22000 Ra

Technical Data
Motor: 400 V / 16 kW / 50 Hz
Fuse protection: 32 A
Dimensions: 1500 x 1600 x 1550 mm
Weight: 550 kg
Pressure: 4000 Pa
Performance: 22000 m³/hr
